Toyota Hilux Vigo (2005-2015) Full Underbody Protection Kit
KPTH001inkl. MwSt. - Versandkosten werden für den gesamten Warenkorb im nächsten Schritt berechnet
A complete underbody protection kit for the Toyota Hilux Vigo. This kit includes a Sump Guard, Belly Guard and Rock Sliders to prevent damage to the sills and sump when navigating tough terrain.
Beschreibung

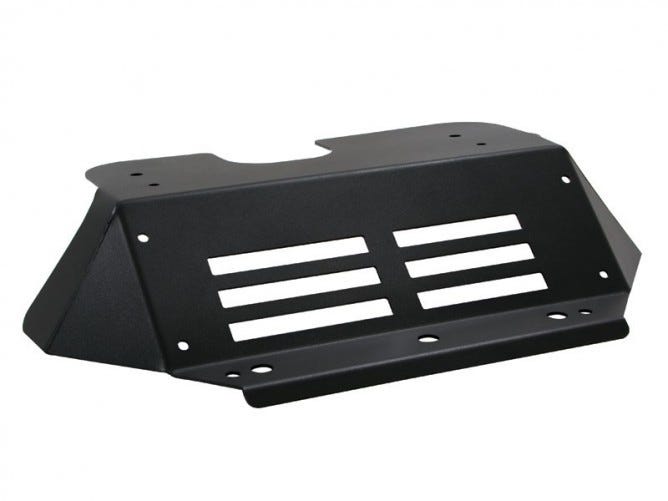

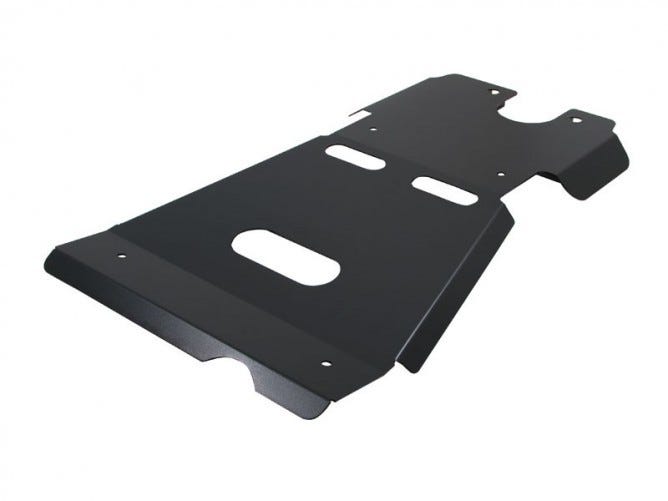

This kit consists of SGTH001, BGTH001 and BPTH006. SGTH001: Mounts underneath the Hilux to protect the engines sump from damage. Installs in the existing mounting points, with no drilling required. Made of 3mm thick steel and sealed with the same durable, weather resistant powder coating as the Front Runner Slimline II Rack. BGTH001: Replaces the existing 0.5mm protection plate with a 3mm steel plate. Sealed with the same durable, weather resistant powder coating as the Front Runner Slimline II Rack. BPTH006: Provide protection for your vehicle's sills and underbody. Follows contours of thevehicle's body. Made from black powder coated steel. Mounts to existing mounting points, with no drilling required. *Only available in South Africa.
techn. Daten
Consists of:1 x Toyota Fortuner/Hilux Vigo (2005-2015) Sump Guard1 x Toyota Fortuner/Hilux (2005-2015) Belly Guard1 x Toyota Hilux (2005-2015) Rock SlidersInstallation HardwareFitting InstructionsSump Guard:Materials used:Black powder coated steelProduct Dimensions:383mm (15.1'') L x 658mm (25.9'') W x 138mm (5.4'') HWeight:4.98kg (11lbs)Belly Guard:Materials used:3mm Black powder coated steelProduct Dimensions:1129mm (44.5'') L x 727mm (28.6'') W x 162mm (6.4'') HWeight:15.49kg (34.1lbs)Rock Sliders:Consists of:1 x Left Hand Rock Slider1 x Right Hand Rock SliderMaterials used:Black powder coated 3mm thick tubing 8mm thick steel mounting bracketsProduct Dimensions:2200mm (86.6'') L x 380mm (15'') W x 210mm (8.3'') HWeight:43.8kg (96.6lbs)
